Description

Unshielded/shielded twisted pair UTP/FSTP LAN (Computer) cable.

Range: CAT 5, CAT 6, CAT 5E (FSTP)

Application

The Networking Cables are used while connecting one network to another. It is also used for connecting two or more computer to share devices, such as printer and scanner. It is unshielded and covered by insulating sheath. In this, a multi-pair, which generally consists of high performance cable is used chiefly for data transmission.Category 5E is recommended for all new and existing installations, supports a frequency range of up to 100MHZ and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).

Description

Annealed Tinned Electrolytic high conductivity copper solid conductor, Foam PE insulated, cores twisted together in a form of pair. Melinex taped, Shielded with aluminium mylar taped (25% overlap) and screened with tinned copper (90%), taped again & overall PVC sheathed type ST-2 cable (Purple Colour) Profibus cables.

Range: upto 400 sq. mm x 3.5 core (Al/Cu)

Application

Standard profibus DP cable for stationary application and specially designed for last assembly. This cable complies exactly with the PROFIBUS DP cable specifications (200m at 1.5 Mbps or 100m at 12 Mbps) Due to its double shielding and acceptable shield resistance it is suitable for installation in EMC demanding areas.

The cables do not heat up and are also chiefly demanded in reactor & process control, navy sector, high temperature control value furnace & oven.ABC Copper conductor PTFE wrapped, Kepton/Mica/Fiber/SS wire Braided suitable for 400 Deg.C to 1200 Deg.C.

Specifications: Suitable for 400deg. C to 1200 Deg. C

Range: 1.5 sq.mm to 120 sq.mm (Single & Multicore)

Application

Load cells & pressure transducers, Thermocouple, Heat Arc sending leads, Aircraft Radar and navigation, Navy Electronic control equipment-atomic energy satellite launching, Ground control, Reactors & process control. Computers, High performance motors, Rectifiers, High temperature control value furnace and oven.

We are engaged in offering finest HR (Heat Resistant) Cables that are demanded in several industries, such as atomic energy satellite, computers, heavy duty motors, aircraft radar & navigation etc. These cables are rich in EMC characteristics and flexible at low temperature. Our HR cables are completely protected against mechanical damage and can withstand extreme temperatures.

Description

These cables ensure quick and smooth flow of data across the network systems. The cables of recommended standard series are highly protective for safe and secure flow of sensitive data in a network system. All these wires are completely resistant to corrosion, weather, radiations, ozone attack and manganese for better results. There are different ratings and capacities in which these cables are available for clients as to suit their unique requirements.

Application

RS Series Cables are the most common cables in the computer networking. These are considered as the advanced computer cables designed and manufactured in compliance with advanced technology using conductors, insulation and sheathing.

Description

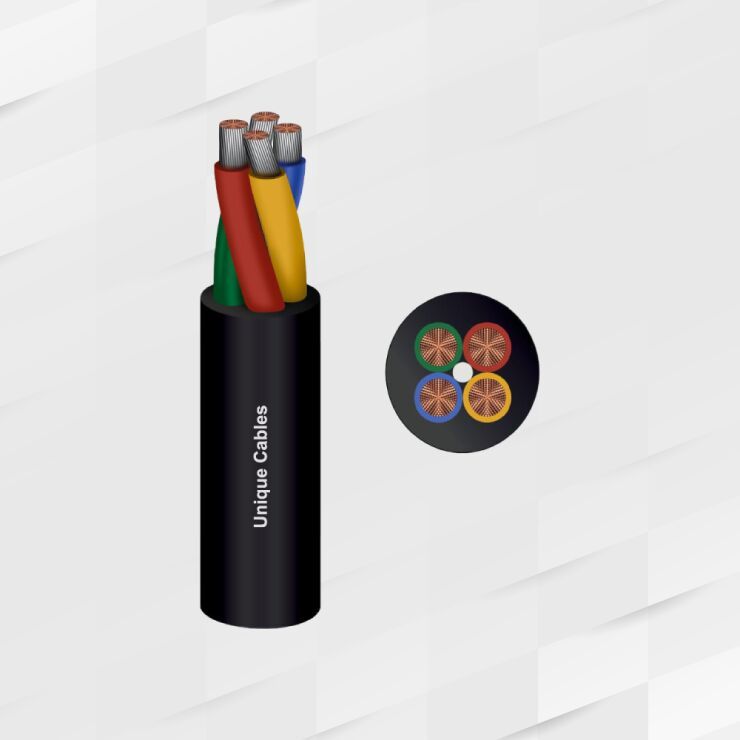

1.1 KV grade, ATC (Annealed Tinned Copper) conductor confirming to IS:8130/1984 class-V, Melinex taped, VIR (Vulcanized Rubber) type IE-1 insulated or EPR (Ethylene propylene Rubber) type IE-2 insulated confirming to IS:6380/1984, colour coded, cores laid-up with suitable center filler & overall TRS (Tough Rubber) type SE-1/SE-2 sheathed or HD-HOFR (Heat, Oil Resisting & Flame Retardant) PCP (Poly-Chloroprene) Type SE-3/SE-4 sheathed confirming to IS:6380/1984, Flexible Trailing cables confirming to IS:9968 (pt-I)1988.

Range: 1.5 sq.mm x to 300 sq.mm (Single & Multi Core)

Application

These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Application include handling equipment mobile power supplies, worksites, CRD stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environment and severe industrial environments.

Description

The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped. Shielded with aluminium mylar taped and screened with tinned copper braiding, taped again & overall PVC sheathed as per BS 5308 Part-2 multi core instrumentation Shielded Flexible cable.

The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices (see electromagnetic interference).The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.

Range: 0.2 sq.mm to 150 sq.mm (single core & multicore)

Application

A shielded cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The shield may be composed of braided strands of copper or aluminium mylar tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket. The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interface with other devices (see electromagnetic interference). The shield minimizes capacitively coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.

Description

All these cables are designed and made in confirmation with the international standards and norms, ensuring high level of safety to the industrial machines and home appliances. Different color codes are used on these cables in accordance with the international standards for safe usage. Excellent quality copper conductor and PVC insulation used in these cables make these wide in demand in every vertical of industry. These cables ensure complete protection to electronic appliances, equipment and machines from shock and fire.

Application

Shot Firing Cables are primarily used in machine tools, electronic appliances, control panels, machines, etc. In these cables, the conductor is composed of plain annealed copper wire and insulation is of PVC compounds. These are widely acclaimed for their excellent conductivity and quality firing output.

Description

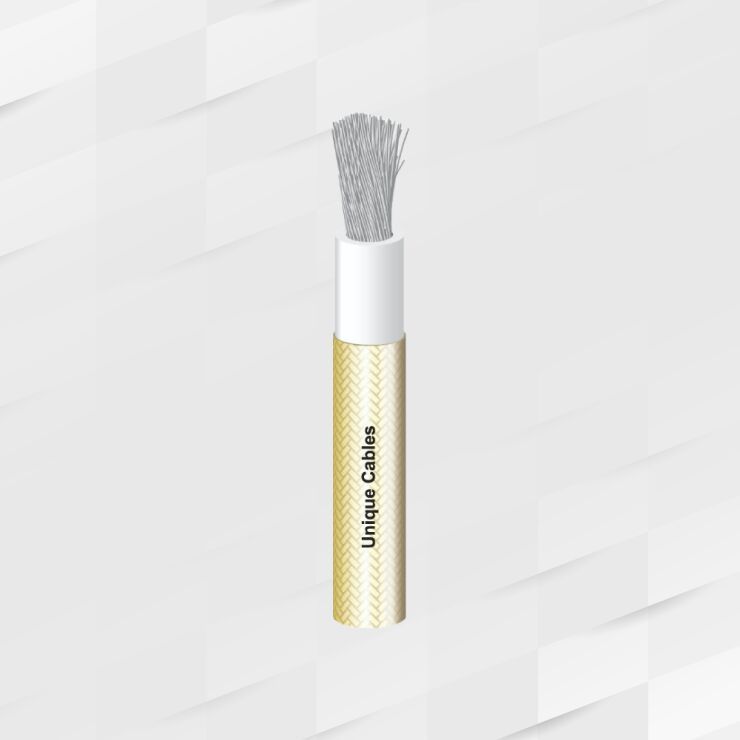

With ability to retain excellent di- electric properties when burnt, these braided cables are flame retardant and self-extinguishing. In addition to this, these cables are also resistant to fungus, UV radiations, corona discharge, acids and manganese. These cables are made with tinned copper stranded wires that are wounded twice and overlapped with polyester films braided with fiberglass.

• 1.1 KV Grade, Multistrand Annealed Tinned Copper (ATC) Conductor As per IS: 8130/1984 class-V, Melinex Taped, Silicon Rubber Insulated type (IE-5) As per IS: 6380/1984 & overall Fiber glass Braided with silicon varnished Rubber Flexible Cable for200°CAsperIS:9968/Pt-l/1988
• Tinned Copper stranded wires twice wounded opposite and well overlapped with polyester films braided with fibreglass yarn and impregnated with high class insulating thermosetting varnish flexible up to temperature from 70"C to 200°C. Resists moisture chemicals, flames fungus radiation, corona discharged and acids ozone attack and even manages to retain excellent de electric properties when burnt

Available Range:

• 1.5 sq.mm to 300 sq.mm (Single & Multi Core)
• 0.5 sq.mm to 630 sq.mm. (Single & Multicore)

Application

Silicon Fiber Glass Braided Cables is the best alternative to PVC, plastic and rubber insulated wire, widely used in high temperature applications. These cables have their prime applications in steel mills, foundries, glass factories, etc. Ensure overall abrasion resistance coverage, these cables are impregnated with high class insulating thermosetting varnish that can sustain wide range of temperature from 70 to 200 degree Celsius.

• Typical industrial applications include food processing packaging, refrigeration furnaces and lighting
• Fibre glass cables is used extensively as motors, transformers, lead wire and at places where conventional PVC wire is not suitable.

Description

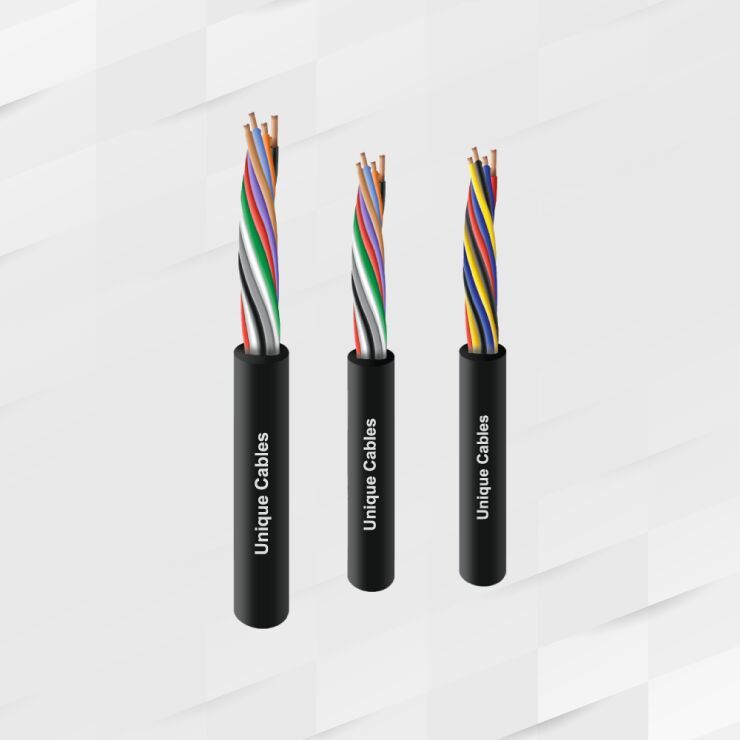

The Flexible Copper Multi Core Cables are used in machine tools, electrical appliances and control panels. In these cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for the ease of identification as per national/ international coding practices. Here, the sheathing is provided with a specially formulated PVC compound to facilitate not only simplification in stripping, but also withstanding mechanical abrasion capacity while in operations.

Description: 1100 V Grade Multi Strand flexible annealed copper conductor, PVC Insulated and sheathed Multi - core flexible cables conforming to IS: 694 / 90.

Range: Multi-Core Sheathed Cables

• 0.5 sq. mm to 4 sq. mm upto 61 cores
• 6 sq. mm to 35 sq. mm upto 7 cores
• 50 sq. mm to 300 sq. mm upto 4 cores

Our Specialty: Till 19 cores we provide all different colors for easy identification.

Application

The Flexible Copper Cables are used in low voltage signals, electrical motors, electrical appliances, control panels, DC power transformers, electrical boards, battery cables etc. These cables are highly flexible and durable, provide enough voltage resistance. It is manufactured on the international parameters and meets all necessary standards. These wires are thermally stable, emit lesser smoke and has suitable oxygen and temperature index, which helps during fire accidents.

Description

Our solar cables are primarily used for the interconnection of the various elements of photovoltaic system such as solar panel arrays. It can be installed for internal & external, within unprotected pipes or in similar closed systems. The cable is ozone resistant and is verified for durability. Further these are also used in roof mounted systems and outdoor ground t, it is halogen free compound having flame retardant and low smoke properties. It is safer and is free from health hazard in case of fire.

Telecommunication ARMOURED Cable, Annealed Tinned Electrolytic Copper Conductor PVC Insulated and PVC Sheathed, Twisted Pairs with Standard together in Concentric Layers to minimise Cross Talk and wrapped with Melinex/PVC tape, ARMOURED with G.I. Wire/Strip as flexible tinned copper conductor single core multistrand, cross linked, zero halogen low smoke insulation and cross linked zero halogen low smoke sheathing, heat resistant upto 120°c and UV resistant solar cables. Taped PVC Sheathed with a Nylon Rip Cord confirming to "TEC" specification No. G/WIR/-06/02 MAY94.

Range: 1.5 sq.mm to 240 sq.mm single core

Application

Solar cable, intended for the interconnection of the various elements of photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within unprotected pipes, or in similar closed systems. The cable is ozone-resistant according to EN50396, UV-resistant according to UNE-HD 605:2008 (HD605/A1), and is tested for durability according to EN 60216. The cable is tested to last 25 years. These cables are especially designed for use in photovoltaic applications. They provide the optimal cable connection between the solar cells and from the solar cells to the inverter or DC main cable. These cables are suitable for outdoor ground and roof mounted systems-though not suitable for direct laying under the earth. They are also suitable laying indoors and in fixed pipe installation. Halogen free compound having flame retardant and low smoke properties, these cables are also safe to care the health of inhabitants in case of fire.

Description

These cables are used mainly in an environment where high-speed signals are transmitted and also where there is a possibility of mechanical damage. They can be widely used for communication and also transmission of control signals, in communication equipment, measuring equipment. robots, and other equipment for industrial and shippingapplications.

Range: 0.5 sq.mm to 300 sq.mm (Single & Multicore)

Application

Unique Make, Copper conductor, Single core / Multi core / Multi Pair, PVC / XLPE insulated, Steel wire braided (Armouring), PVC / PVC-ST2 / F Ei / FILLS sheathed cables to provide flexibility and added mechanical protection.

Description

1100 V Grade annealed bare electrolytic high conductivity multi stranded copper conductor polyethylene coated, PVC insulated and overall matt finish sheathed flat 3 core waterproof and weatherproof submersible cables as per IS : 694 / 1990. 1100 V Grade annealed bare electrolytic high conductivity multi stranded copper conductor PVC insulated and overall matt finish sheathed flat 3 core submersible cables as per IS:694/1990. Range: 10 sq.mm to 185 sq.mm. These are used to connect submersible pump motor with supply lines. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application.

Features

• Excellent resistance to water, moisture, abrasion, grease and oil
• Longer flex life
• Excellent mechanical & electrical properties

Range: 1.5 sq mm to 120 sq mm

Application

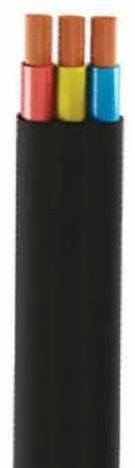

Unique 3 Core Flat Cables are manufactured keeping in mind the severe and difficult conditions in which they are required to perform. The area of installation is physically restrictive, and the environment is every hostile. These are used to connect submersible pump motor with supply lines. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. Certain striking features of our Flat Submersible Pump cables include excellent resistance to water, moisture, abrasion, grease, oil, long flex life, excellent mechanical & electrical properties.

Description

In the cables, varied EMFs are generated with different metal pairs that are further proportional to hot junction and the point where it is measured. All these cables are available in different color codes or cores and sheathing as per the international standards.

Extention leads of different metals but having similar EMF output between 0°c to 100°c connected between Thermocouple metals junction and the measuring instruments are called compensating cables which are generally recommended as solid conductor leads.

Range:

• K-Chromel/Alumel-Most commonly used
• T-Cooper/Constantan for low temperature & cryogenic applications
• J-Iron/Constantan used in reducing atmosphere
• E-Chromel/Constantan Highest EMF output
• R-(Plantinum-13% Rhodium)/Platinum & S-(Platinum-10% Rhodium) /Platinum very high temperature measurements.
• B-(Platinum-30% Rhodium)/Platinum mainly used in glass industry Different colour codes of cores and sheathing as per international practices are used to denote the various thermocouple cables

Application

Thermocouple/Compensating Cables are the extension leads mostly used in glass industry, low temperature & cryogenic applications and reducing atmosphere. The cables are made from different metals but with similar EMF output in the range of 0 to 100 degree Celsius. Widely used to connect the thermocouple metal junction and measuring instrument, these compensating cables are considered as the best solid conductor leads.

Different metal pairs generate different emfs which is proportionate to the hot junction and the point where it its measured. Common combination of thermocouple metals.

Description

1100 V Annealed Bare Electrolytic high Conductivity Copper Flexible Conductor PVC Insulated Triple Layered PVC Sheathed Mining Cable.

We provide supreme quality Triple layer Coated Mining Cables, which are extensively used in machinery industry, marble industry, lifting platforms, conveyor, transport belts, agricultural equipment, construction machinery and trucks with high chemical, thermal or mechanical stress. This is 1100 V annealed bare electrolytic high conductivity copper, flexible conductor PVC insulated triple layered PVC sheathed mining cable.

Features

• High performance
• Comes with longer service life
• Standard & customized engineered cable
• Can bear extreme heat & cold
• Unaffected by oil, chemical & water
• Abrasion resistant
• With added strength
• Corrosion resistant
• Easier to solder

Range: 16sqmm x 3.5 core, 16sqmm x 4 core, 25sqmm x 3.5 core, 25sqmm x 4 core, 35 sqmm x 4 core

Application

Intended for use in machinery, marble industry, lifting platforms, conveyor and transport belts, agricultural equipment, construction machinery or trucks with high chemical, thermal or mechanical stress.

Our company designs Mining Cables that are widely demanded in areas where mining activities take place. Our cables are specially designed to withstand all the challenges in mining areas. These cables have possibility of extruding up to three layers of rubber in one operations and instrumentation which allow controlling production process and meeting the standard parameters without any disruption.

• Conveyor
• Transport belt
• Agricultural equipment
• Construction machinery
• Trucks
• Machinery industry
• Marble industry
• Lifting platforms

Description

General Welding Cables are designed to withstand tough weather conditions. Our cables can perform even while exposure to oil, acids, alkalis, flame and moisture. These wires go through stringent quality tests under the supervision of qualified professionals. These are available in several standard and customized specifications.

Range: 16 sq.mm to 120 sq.mm

Application

The Welding Cables are used for the transmission of high currents from the electric welding machine to the welding tool. These are suited for flexible use under rough conditions such as on conveyor systems, assembly lines, machine tools, ship, building, motor car manufacturing and in manually and automatically operated line, spot welding machines.\r\n\r\nThe cables can work under high voltage and is constructed from annealed bare copper/aluminum conductor. Our cables are highly durable and withstand tough working conditions. These are widely installed in welding workshops.
