Industrial Cables

1100 V Grade annealed bare electrolytic high conductivity multi stranded copper conductor polyethylene coated, PVC insulated and overall matt finish sheathed flat 3 core waterproof and weatherproof submersible cables as per IS : 694 / 1990. 1100 V Grade annealed bare electrolytic high conductivity multi stranded copper conductor PVC insulated and overall matt finish sheathed flat 3 core submersible cables as per IS:694/1990. Range: 10 sq.mm to 185 sq.mm. These are used to connect submersible pump motor with supply lines. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application.

Features

• Excellent resistance to water, moisture, abrasion, grease and oil


• Longer flex life


• Excellent mechanical & electrical properties

Range: 1.5 sq mm to 120 sq mmApplication

Unique 3 Core Flat Cables are manufactured keeping in mind the severe and difficult conditions in which they are required to perform. The area of installation is physically restrictive, and the environment is every hostile. These are used to connect submersible pump motor with supply lines. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. Certain striking features of our Flat Submersible Pump cables include excellent resistance to water, moisture, abrasion, grease, oil, long flex life, excellent mechanical & electrical properties

We are engaged in designing supreme quality XLPE LT Power Cables that are installed in underground and over head transmissions. Our XLPE LT power cables have minimal dielectric losses, better resistance to most chemicals, oils, acids etc. It has a tough and resilient sheath with excellent fire-resisting qualities. Further, it has complete protection against most forms of electrolytic and chemical corrosion.

Features:

• Provides for excellent mechanical, electrical, thermal and chemical properties
• Can handle higher current ratings that make it possible for using one lower size of cable in comparison to PVC
• Feature superior emergency overload withstand capacities with overload temperatures of up to 1300 deg C
• Has better ageing property with resistance to deformation under load conditions
• Can retain flexibility down up to 400 deg C
• Features higher short-circuit rating that allows withstanding short-circuit temperatures up to 2500 deg C
• Offers superior resistance to most chemicals like acids, bases & oils
• Very less dielectric losses
• Offers easy jointing & termination
• Allows easy handling during installation as these cables are of light weight finish

Cable Size: Up to 400 sq. mm. X 3.5 core, 1000 sq. mm x 1 core
Number of Cores: 3, 4 Cores

The Copper Armoured Telephone Cables are made from solid plant copper conductor, color-coded polyethylene bedding, galvanized steel wire armor and black or gray polyethylene or external grade PVC sheath. Our wires are made under the supervision of qualified professionals and go through stringent quality checks.

Application:

• These are widely used for external connection of telephone systems and other communications equipment where the added protection of steel wire armoring is needed. It is also installed for primary and secondary underground (direct buried) distribution networks.

We develop quality assured Airport Lead Cables that is made from steel wires, which are layered in helix form. These are used for connecting the constant current regulation and for the isolating transformers and between them. This cable can be buried providing there is an extra mechanical protection. These cables are developed under the international norms and regulations. It is flame resistant, halogen-free and can bear harsh weather conditions. These cables are available in standard as well as in customized forms as per the suitability of our clients.

Features:

• Halogen-free
• Made from steel wires with layered in a helix
• Rigid composition
• Can bare high & low temperature
• Flame resistant
• Impact resistant
• Can withstand tough weather conditions
• Oil resistant

These are also preferred at several areas where conventional PVC wire is not appropriate. The cable resists flames fungus radiation, chemical moisture, corona discharged, and acids ozone attack and even manages to retain excellent de electric properties when burnt.

We are offering supreme quality Fire Alarm Cables that are specially designed for wiring of fire systems, fire protective circuits, burglar alarms, smoke detectors and voice communications. These fire alarm cables comprise of high-temperature electrical wire and are temperature rated up to 90 degrees Celsius. Our fire alarm cables are manufactured under the international parameters and stringently tested by our team of engineers.

This makes the rescue mission a lot easy to execute. Our fire survival cables have the unique ability to extend functionality for circuit and data integrity in extreme fire situations. These cables are made from inorganic materials that do not burn, emit smoke or gas and survive harsh fire explosions. These cables are developed for life-critical situations and are in accordance to fire management systems.

Specifications

• Grade 1: Remains operation up to up to 30 minutes when subjected to 830 deg. temperature

• Grade 2: Can last 180 minutes when subjected to 930 deg. C temperature

Our company develops the finest Load Cell Cables that are majorly installed in multiple load cell weighing systems. In this, load cell has to be electrically connected so that the signal (output) lines, excitation (power supply) and sense lines are in parallel.

The Networking Cables are used while connecting one network to another. It is also used for connecting two or more computer to share devices, such as printer and scanner. It is unshielded and covered by an insulating sheath. In this, a multi-pair, which generally consists of the high-performance cable is used chiefly for data transmission.

Application

The Networking Cables are used while connecting one network to another. It is also used for connecting two or more computer to share devices, such as printer and scanner. It is unshielded and covered by insulating sheath. In this, a multi-pair, which generally consists of high performance cable is used chiefly for data transmission.

Description

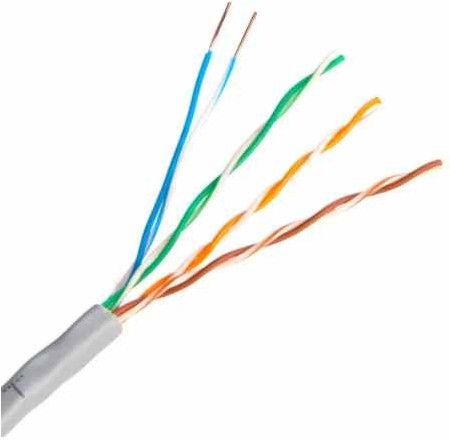

Application:- A multipair (usually 4 Pair) high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E is recommended for all new and existing installations, supports a frequency range of up to 100MHZ and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).

Description:- Unshielded/shielded twisted pair UTP/FSTP LAN (Computer) cable.

Range:- CAT 5, CAT6, CAT 5E (FSTP)

The HR Cable do not heat up and are also chiefly demanded in reactor & process control, navy sector, high-temperature control value furnace & oven.
We are engaged in offering finest HR (Heat Resistant) Cables that are demanded in several industries, such as atomic energy satellite, computers, heavy duty motors, aircraft radar & navigation etc. These cables are rich in EMC characteristics and flexible at low temperature. Our HR cables are completely protected against mechanical damage and can withstand extreme temperatures.

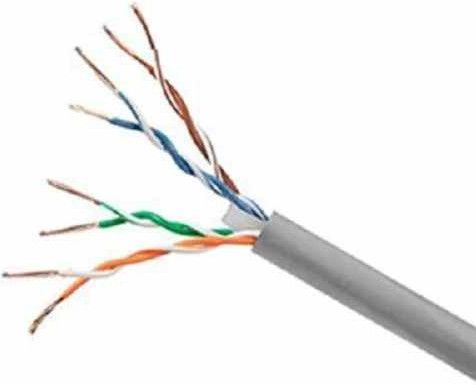

RS Series Cables are the most common cables in the computer networking. These are considered as the advanced computer cables designed and manufactured in compliance with advanced technology using conductors, insulation and sheathing.
These cables ensure quick and smooth flow of data across the network systems. The cables of recommended standard series are highly protective for safe and secure flow of sensitive data in a network system. All these wires are completely resistant to corrosion, weather, radiations, ozone attack and manganese for better results. There are different ratings and capacities in which these cables are available for clients as to suit their unique requirements.

Application

RS Series Cables are the most common cables in the computer networking. These are considered as the advanced computer cables designed and manufactured in compliance with advanced technology using conductors, insulation and sheathing.

Description

These cables ensure quick and smooth flow of data across the network systems. The cables of recommended standard series are highly protective for safe and secure flow of sensitive data in a network system. All these wires are completely resistant to corrosion, weather, radiations, ozone attack and manganese for better results. There are different ratings and capacities in which these cables are available for clients as to suit their unique requirements.

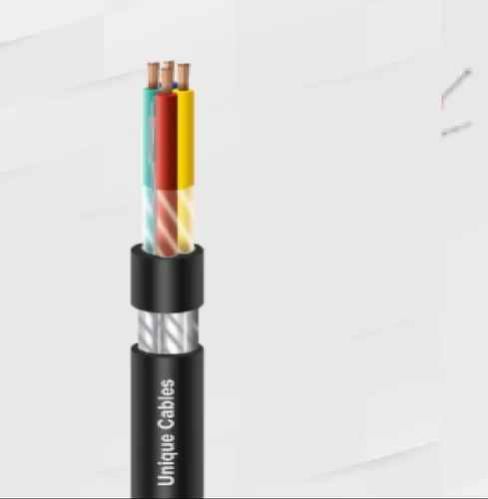

The annealed tinned/bare Electrolytic high conductivity copper multi strand flexible conductor as per IS: 8130/1984 of class-5, PVC insulated as per IS: 5831/1984, cores twisted together, Melinex taped. Shielded with aluminium mylar taped and screened with tinned copper braiding, taped again & overall PVC sheathed as per BS 5308 Part-2 multi core instrumentation Shielded Flexible cable.

The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interfere with other devices (see electromagnetic interference).The shield minimizes capacitive coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only.

Range: 0.2 sq.mm to 150 sq.mm (single core & multicore)Application

A shielded cable is an electrical cable of one or more insulated conductors enclosed by a common conductive layer. The shield may be composed of braided strands of copper or aluminium mylar tape, or a layer of conducting polymer. Usually, this shield is covered with a jacket. The shield acts as a Faraday cage to reduce electrical noise from affecting the signals, and to reduce electromagnetic radiation that may interface with other devices (see electromagnetic interference). The shield minimizes capacitively coupled noise from other electrical sources. The shield must be applied across cable splices. In shielded signal cables the shield may act as the return path for the signal, or may act as screening only

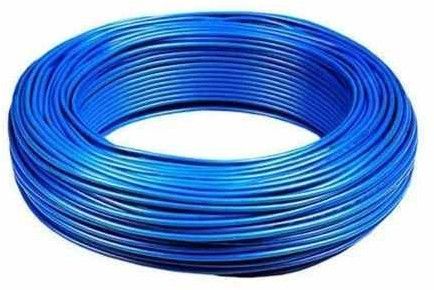

Shot Firing Cables are primarily used in machine tools, electronic appliances, control panels, machines, etc. In these cables, the conductor is composed of plain annealed copper wire and insulation is of PVC compounds. These are widely acclaimed for their excellent conductivity and quality firing output.
All these cables are designed and made in conformation with the international standards and norms, ensuring a high level of safety to the industrial machines and home appliances. Different color codes are used on these cables in accordance with the international standards for safe usage. Excellent quality copper conductor and PVC insulation used in these cables make these wide in demand in every vertical of the industry.

1.1 KV grade, ATC (Annealed Tinned Copper) conductor confirming to IS:8130/1984 class-V, Melinex taped, VIR (Vulcanized Rubber) type IE-1 insulated or EPR (Ethylene propylene Rubber) type IE-2 insulated confirming to IS:6380/1984, colour coded, cores laid-up with suitable center filler & overall TRS (Tough Rubber) type SE-1/SE-2 sheathed or HD-HOFR (Heat, Oil Resisting & Flame Retardant) PCP (Poly-Chloroprene) Type SE-3/SE-4 sheathed confirming to IS:6380/1984, Flexible Trailing cables confirming to IS:9968 (pt-I)1988.

Range: 1.5 sq.mm x to 300 sq.mm (Single & Multi Core)

Various type of heating solutions for process heating up to 2000C can be designed with these heaters. The teflon wires are available in various wattage ratings, ranging from 150 Watts to 3000 Watts, with or without shield. We offer these wires in various customized options as per clients’ specifications.

Application

The Telephone Switch Board Wires are used while interconnection of telephone, telegraph and electronic equipment in domestic and commercial buildings. These switch board wires are light in weight, smaller in diameter and excellent in chemical, moisture and heat resistance. It is also used in switch board wiring, industrial control panels and in various types of control apparatus.

Description

Unarmoured/ Armoured Communication Telephone Cable, Annealed Tinned Electrolytic High Conductivity Copper Conductor PVC Insulated, Each Wire Twisted with its make to form a pair and each pair Twisted and Hunched together in concentric layers to minimise Cross Talk, Moisture Proof Untapped/Melinex Taped, PVC Sheathed with a Nylon Rip Cord confirming to 'TEC" specification No. G/WER/-0602 MAY 94.

Range:- 1 Pair to 100 Pair ( 0.41,0.51 & 0.61 mm)

Thermocouple Compensating Cables are the extension leads mostly used in glass industry, low temperature & cryogenic applications and reducing atmosphere. The cables are made from different metals but with similar EMF output in the range of 0 to 100 degree Celsius. Widely used to connect the thermocouple metal junction and measuring instrument, these compensating cables are considered as the best solid conductor leads. In the cables, varied EMFs are generated with different metal pairs that are further proportional to hot junction and the point where it is measured. All these cables are available in different color codes or cores and sheathing as per the international standards.

Other details:

• Extension leads of different metals but having similar EMF output between 0°c to 100°c connected between Thermocouple metals junction and the measuring instruments are called compensating cables which are generally recommended as solid conductor leads.

Application:

• Different metal pairs generate different EMFs which is proportionate to the hot junction and the point where it is measured. Common combination of thermocouple metals.

Available Range:

• K-Chromel/AIumel-Most commonly used.


• T-Copper /Constantan- for low temperature & cryogenic applications.


• J-Iron/ Constantan-Used in reducing atmosphere


• E -Chromel/ Constantan-Highest EMF output.


• R-(Platinum-13% Rhodium)/ Platinum & S-(Platinum-10% Rhodium) / Platinum-very High temperature measurements.


• B- (Platinum-30% Rhodium)/ Platinum mainly used in glass industry.


• Different color codes of cores and sheathing as per international practices are used to denote the various thermocouple cables.
