Load Cell Cable

Here, usually the connection is not formed at the indicator, but in a separate housing that is referred as junction box. These are widely installed in digital cable industry, telecom industry and battery chargers. Our cables are heat resistant, consume less power and easy to wind and install. It is offered with foil screen with drain wire or with high density tinned copper wire braid. Further, it protects against both water & mechanical damage.

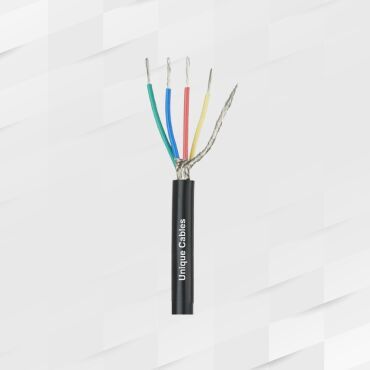

UNIQUE make annealed tinned Electrolytic high conductivity copper strand conductor as per IS:8130/1984 of class-2, PVC insulated as per IS:5831/1984, cores (Red, Green, Black, White) twisted together. Spiral mylar taped 50% over lap and screened with tinned copper braiding (90%), overall PVC sheathed Load Cell Flexible cable.

Load cells cable are used in multiple load cell weighting systems. Load cells should be electrically connected in such a way that signal (output) lines, excitation (power supply) and sense (when present) lines are in parallel. Usually the connection is not made at the indicator, but in a separate housing, a so called junction box, located adjacent to the weighting system.
