50 Meter (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Unique Cables |
| Conductor Material | PVC |
| Inner Material | Copper |
| Click to view more | |
Product Details
Application
Electrical Industrial
Feature
Quality Assured, Shock Poof
Country of Origin
India
Range
Upto 400 Sq. Mm X 3.5 Core (Al/Cu)
Description

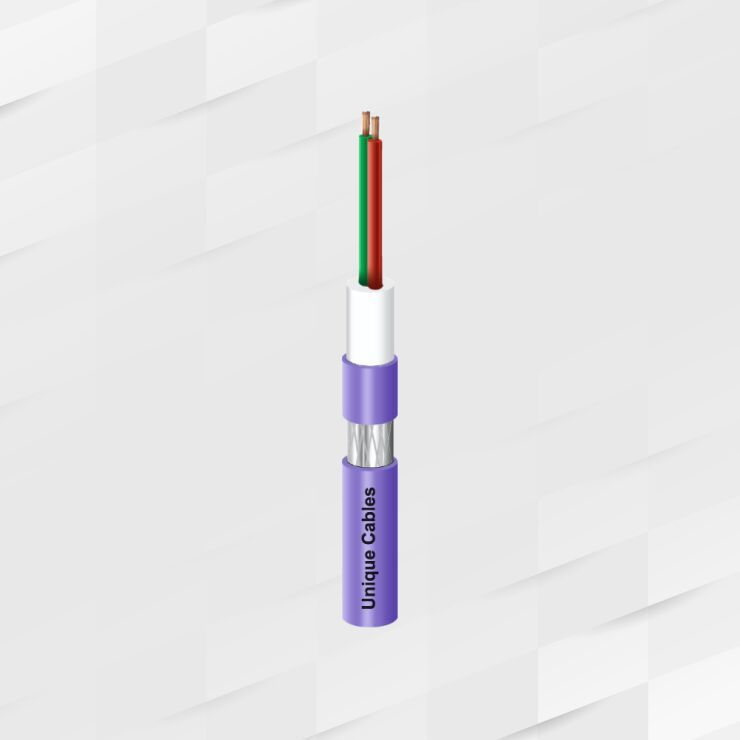

Annealed Tinned Electrolytic high conductivity copper solid conductor, Foam PE insulated, cores twisted together in a form of pair. Melinex taped, Shielded with aluminium mylar taped (25% overlap) and screened with tinned copper (90%), taped again & overall PVC sheathed type ST-2 cable (Purple Colour) Profibus cables.
Range: upto 400 sq. mm x 3.5 core (Al/Cu)
Application
Standard profibus DP cable for stationary application and specially designed for last assembly. This cable complies exactly with the PROFIBUS DP cable specifications (200m at 1.5 Mbps or 100m at 12 Mbps) Due to its double shielding and acceptable shield resistance it is suitable for installation in EMC demanding areas.
