| Business Type | Manufacturer, Exporter, Supplier |
| Material | Copper |
| Insulation Material | PVC |
| Color | Black |
| Click to view more | |
Product Details

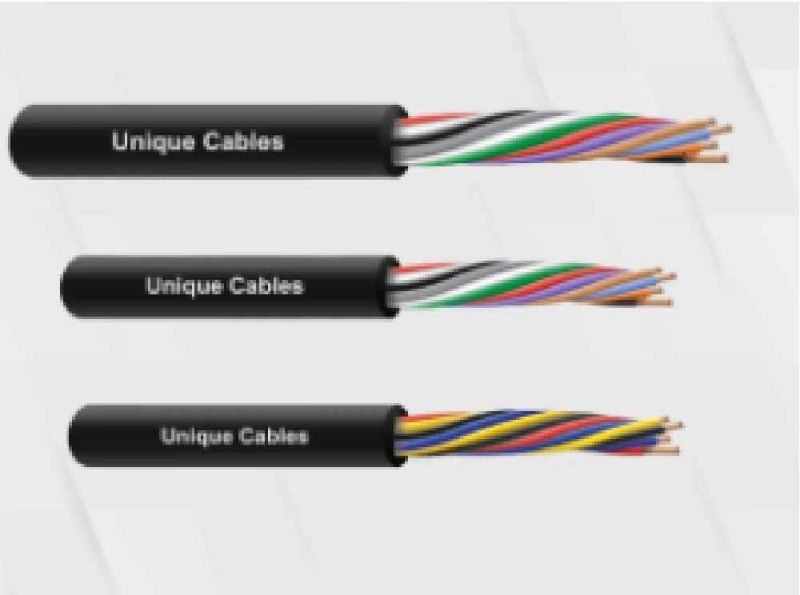

The Flexible Copper Multi Core Cables are used in machine tools, electrical appliances and control panels. In these cables, the insulated cores are laid up to form the core assembly. The inner cores are coded for the ease of identification as per national/ international coding practices. Here, the sheathing is provided with a specially formulated PVC compound to facilitate not only simplification in stripping, but also withstanding mechanical abrasion capacity while in operations.
Description: 1100 V Grade Multi Strand flexible annealed copper conductor, PVC Insulated and sheathed Multi - core flexible cables conforming to IS: 694 / 90.Range: Multi-Core Sheathed Cables
- 0.5 sq. mm to 4 sq. mm upto 61 cores
- 6 sq. mm to 35 sq. mm upto 7 cores
- 50 sq. mm to 300 sq. mm upto 4 cores
Our Specialty: Till 19 cores we provide all different colors for easy identification.Application
The Flexible Copper Cables are used in low voltage signals, electrical motors, electrical appliances, control panels, DC power transformers, electrical boards, battery cables etc. These cables are highly flexible and durable, provide enough voltage resistance. It is manufactured on the international parameters and meets all necessary standards. These wires are thermally stable, emit lesser smoke and has suitable oxygen and temperature index, which helps during fire accidents
